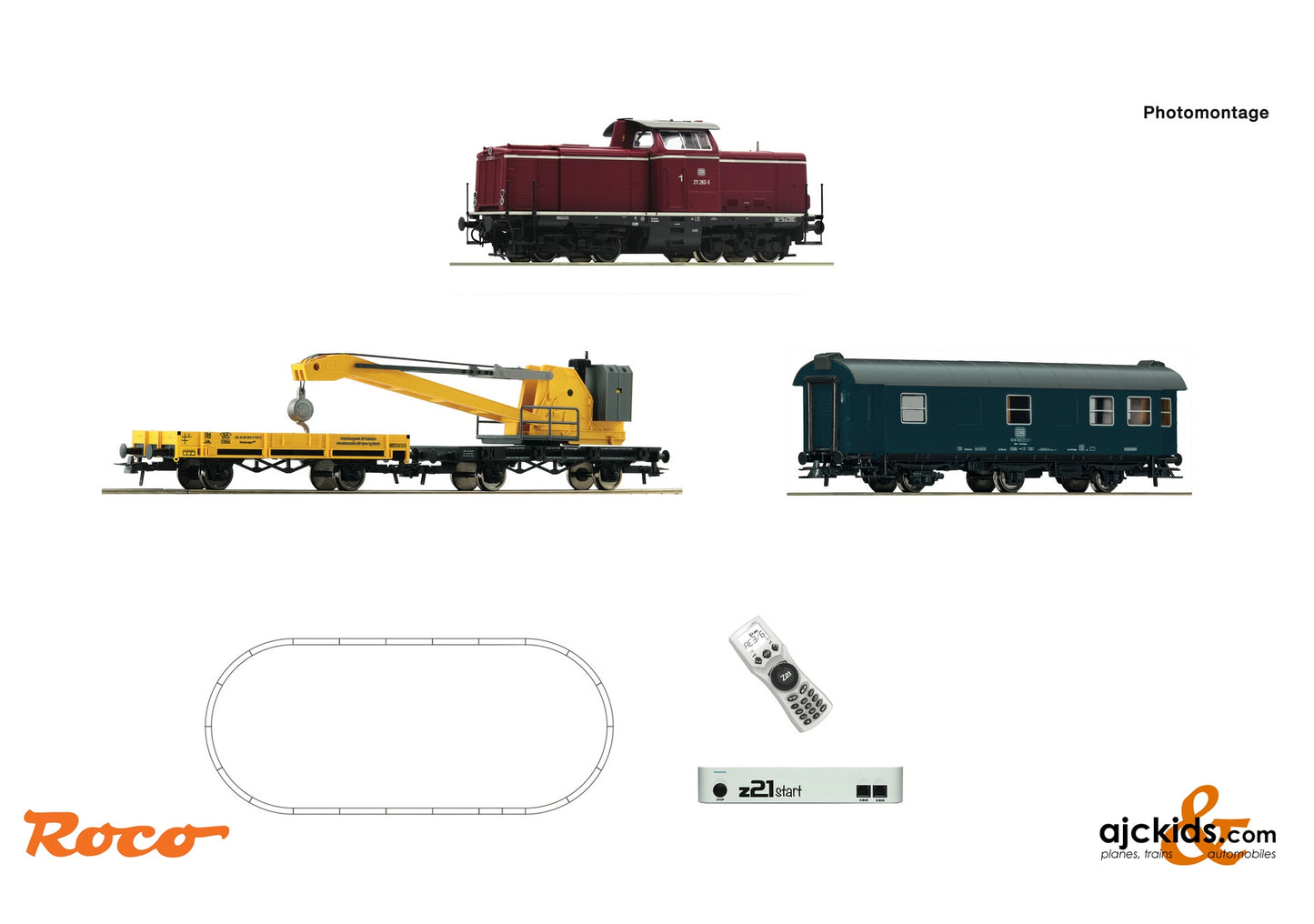

z21 start digital set: Diesel locomotive class 211 with crane train of the German Federal Railway.
■ Height-adjustable crane boom
■ Crane structure can be swivelled 360 degrees

Contents:

1 diesel locomotive class 211 1 crane with protection wagon 1 personnel carrier 1 z21 start 1 Z21 multiMAUS 1 mains plug ROCO LINE track oval (with bed): 12 curved tracks R2, 9 straight tracks G1, 1 straight track G½, 1 connection track (G½) Space requirement: approx. 215 x 100 cm The z21 is a modular construction digital system:
■ Begin with the Z21 start control centre and the Z21 multiMAUS.
■ Retrofit possible using the WLAN router and activation code, art. no. 10814, thus allowing the use of a smartphone, tablet PC, Z21 WLANMAUS 10813 and computer (software-supported model railway control centre).
■ If you have your own WLAN router and are familiar with WLAN networks, then the activation code 10818 is all you need for the retrofit mentioned above.

Additional Information

General data

Coupling	NEM shaft 362 with close coupling mechanism, NEM shaft 362 without close coupling mechanism
Minimum radius	358 mm
Flywheel	yes
AC Wheel set Article number	40196, 6560
Number of driven axles	4
Number of axles with traction tires	1
Article number	5110004
Interior fitting	Model with interior furnishing
Scale	H0-Scale
Era	IV
Railway Company	DB

Electrical

Motor	5-pole motor
Interior lighting Article number	40361
Head light	3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel
LED head light	yes
Interior lighting	Retrofittable
Control	DC Digital
Interface	Electrical interface for digital retrofit decoder PluX22
Digital decoder	PluX22

Measurements

Length over buffer

494 mm
